Details

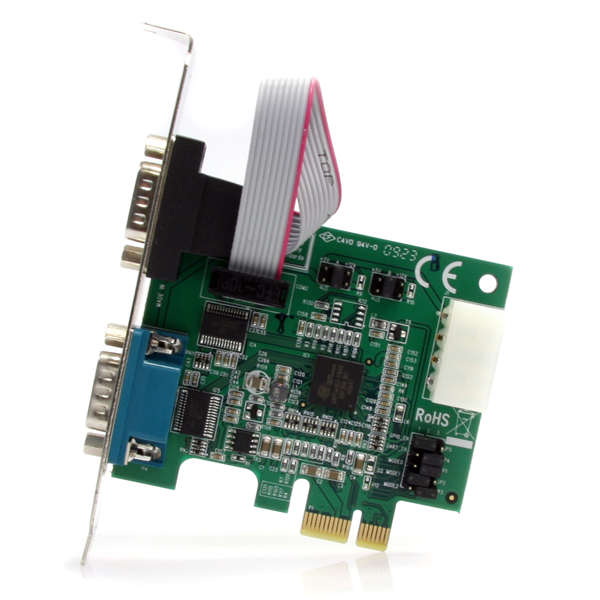

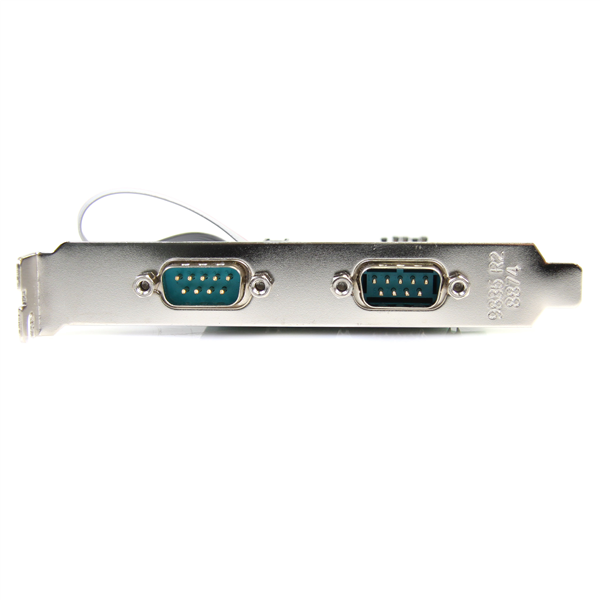

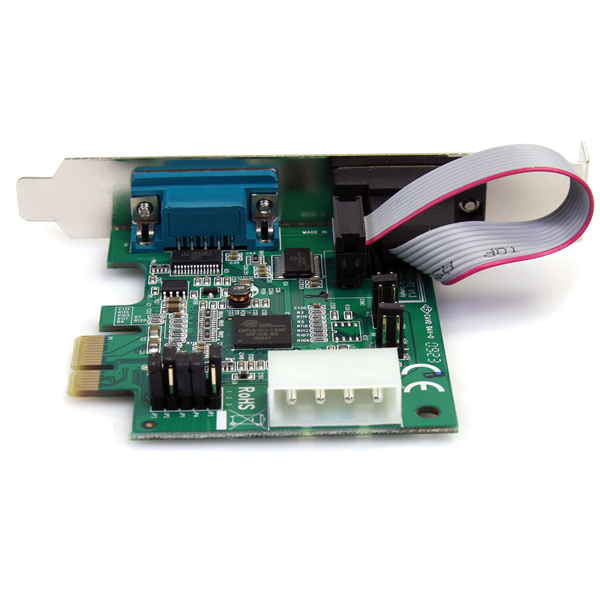

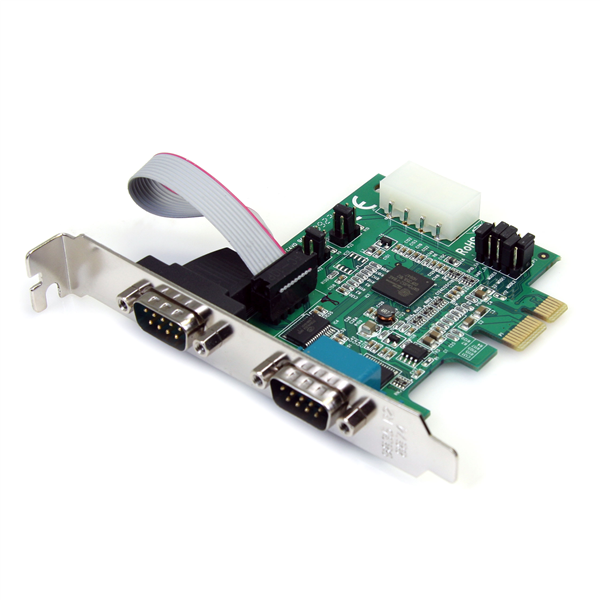

2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Part Number PEX2S952 New,teste,working one year warranty
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Ports | 2 |
| Interface | Serial |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Port Style | Integrated on Card |
| Chipset ID | PLX/Oxford - OXPCIe952 |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| Internal Ports | 1 - LP4 (4 pin; Molex Large Drive Power) Male |
| External Ports | 2 - DB-9 (9 pin; D-Sub) Male |
| Performance | |
| Max Baud Rate | 460.8 Kbps |
| Serial Protocol | RS-232 |
| Data Bits | 4, 5, 6, 7, 8 |
| FIFO | 128 Bytes |
| Stop Bits | 1, 1.5, 2 |
| Software | |
| OS Compatibility | Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), XP Embedded, CE 6.0 / 5.0 Windows Server® 2012, 2008 R2, 2003(32/64), 2000 Linux 2.4.x / 2.6.x |
| Special Notes / Requirements | |
| Note | Selectable power output on pin 9 of the serial port |
| Physical Characteristics | |
| Color | Green |
| Product Length | 3.5 in [90 mm] |
| Product Width | 2.6 in [65 mm] |
| Product Height | 0.8 in [20 mm] |
| Product Weight | 2 oz [58 g] |
| Environmental | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) |
| Humidity | 5~85% RH |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 lb [0.1 kg] |
| What's in the Box | |
| Included in Package | 1 - 2 Port Serial Card |
| 2 - Low Profile Bracket | |
| 1 - Driver CD | |
| 1 - Instruction Manual | |
