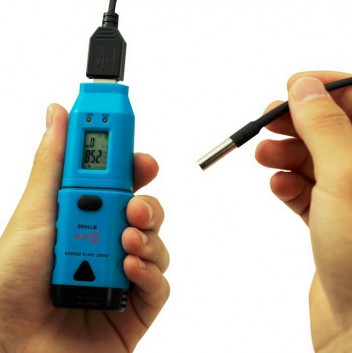

New BTH06 High Accuracy Single Channel Temperature USB Data Logger Outside Probe With Analysis PC Software DGraph LED Alarm

Introduction:
This data logger with external probe measures and stores up to 32,000 temperature(-35 to 80° C(-31~176° F)) readings. Some professional applications can be provided by the PC software DGraph. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging, or confirm and clear LED alarm when LED alarm is hold status.
User can plug data logger straight into PC’s USB port without any cables. Before getting started, user need to install USB driver and DGraph software, provided on the CD which is included in product packing box. All the software can run under Windows XP, Vista, 7 or 8(32 bit and 64 bit Versions). User can easily use DGraph software to setup sample rate(from 10 seconds to 12 hours), high/low alarm limit and start/stop method , and download data to PC, etc. And then user can view, analyse and print the data, or export other file formats(txt, xsl, csv, bmp, jpg).
Especially, for some professional applications, user can set access password, name each channel, enable/disable specified channel, input calibration data for each channel, disable LED indication for saving power, and select sample mode(Instant, Average, Maximum and Minimum), etc.

Applications:
This data logger is used mainly to monitor and verify temperature-sensitive goods, equipment or areas. Example:
Cold Chain Refrigeration Transportations HVAC Food&Pharmaceutical Warehouse

Features:
External temperature probe, the length of 2m(or customized)
Portable, precise, compact and low cost
USB interface directly communicate with PC for setup and data download
Unique and uniform PC control software: DGraph
Each unit has single serial number
User can set access password fo each data logger
Alarm and status indication via LED
Start logging method: Immediately, Button, Start at
Replaceable lithium battery and data is not lost if exhausted
Two point calibration for each channel
Start logging method: Immediately, Button, Start at
Replaceable lithium battery and data is not lost if exhausted
Alarm and status indication via LED
Alarm limit settings for all channels
IP66 waterproof and dustproof
User can customize compound graph
User can customize new unit easily
User can name each channel and enable/disable it

Specifications:
Measurement Range: -40 to 125° C(-40 to 257° F)
Accuracy(Typ.): ±0.5° C(±0. 9° F)
Resolution(Typ.): 0.1° C(0.2° F)
Memory Capacity: 64KBytes(Total 32,000 readings)
Sample Rate: User selectable from once every 2 seconds to once every 12 hours
PC Software: DGraph software and USB driver required (Included in CD)
Power Supply: User replaceable 1/2AA 3.6V lithium battery, 1200mAh
Battery Life: Approx. 3 Years @ 1 Minute Sample Rate
Dimensions: 120mmx37mmx23mm(4.8"x1.5"x0.9")
Case Material and Weight: ABS; Approx. 80 grams(2.82 oz)
